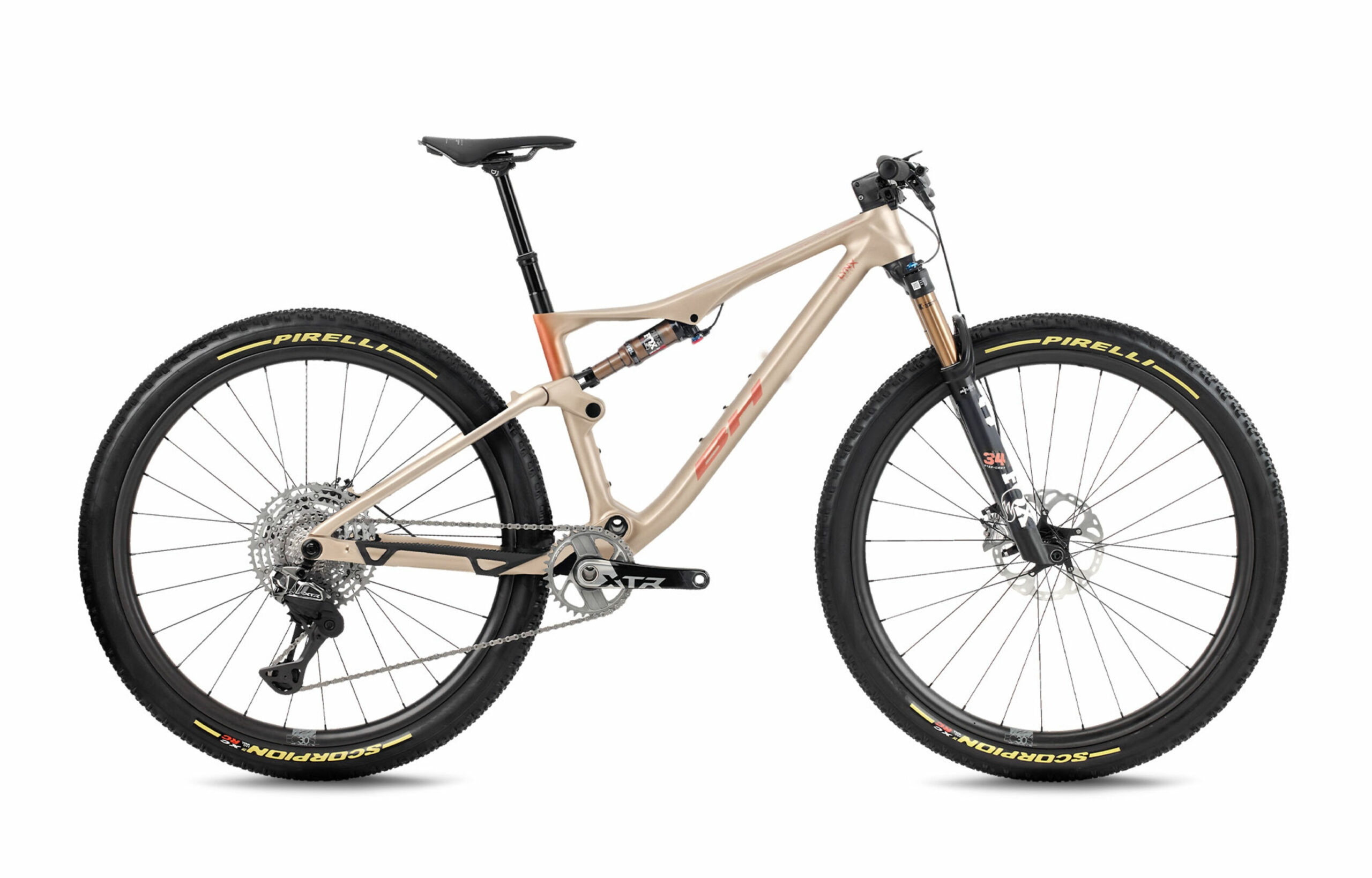

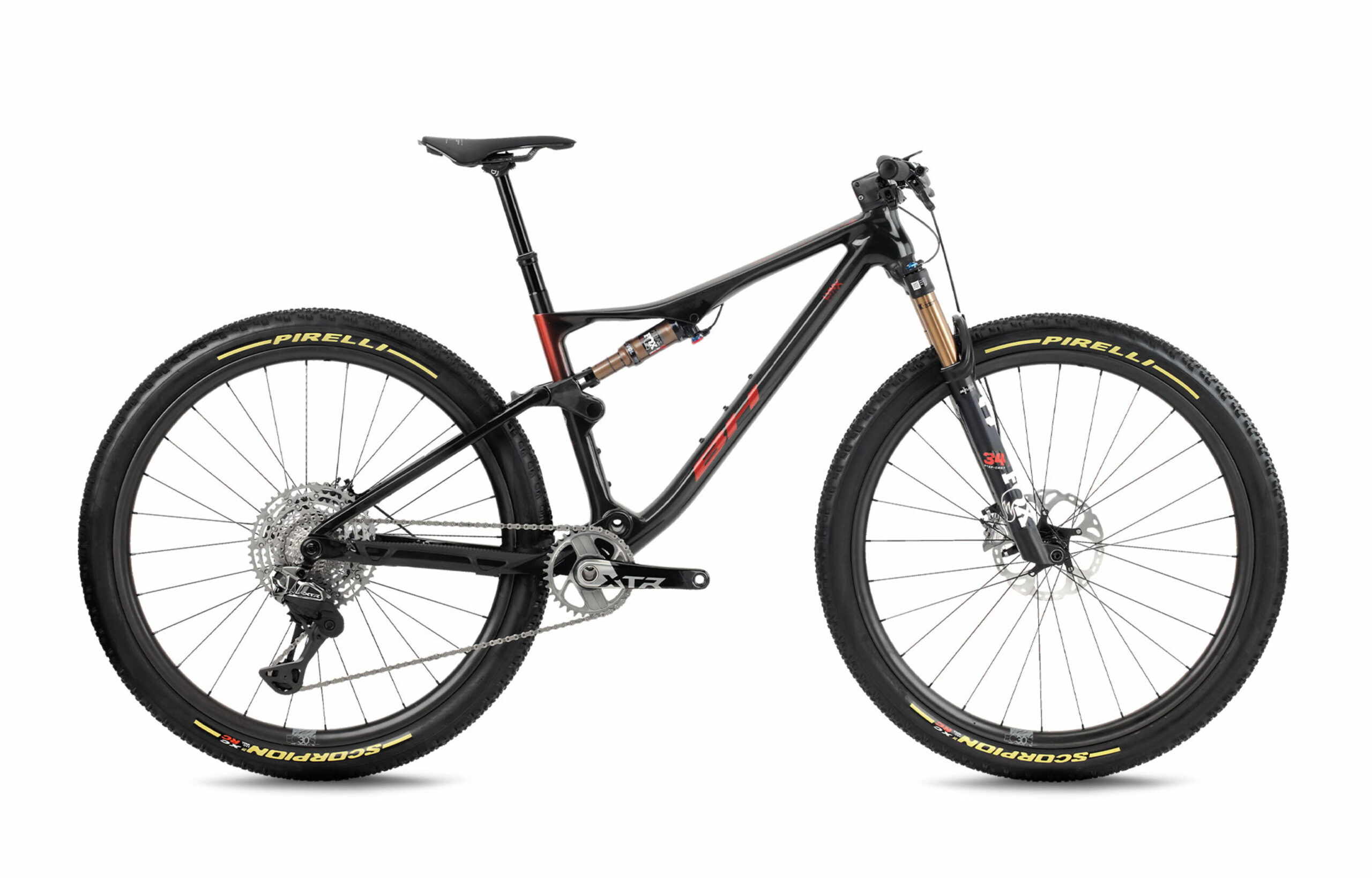

LYNX RACE 9.5
LYNX RACE 9.5
| FRAME |
FRAME Lynx Race, EC Layup, Acros ICR, PF92, 148×12, UDH
|
REAR SHOCK Fox Float SLFactory Push to Lock, 190x45mm, DCM,DRM,CMF
|
FORK Fox 34SC Factory Push to Lock Kabolt 120mm
|
|||
| DRIVETRAIN |
SHIFT LEVERS Shimano XTR Di2 12sp
|
REAR DERAILLEUR Shimano XTR Di2 12sp
|
CRANK SET Shimano XTR Di2 12sp, 34, 175mm
|
BB SET Shimano PF92
|
CASSETE Shimano XTR 9200 10/51
|
CHAIN Shimano XTR 9100 116L
|
| BRAKES |
FRONT BRAKE Shimano XTR 9200 180mm
|
REAR BRAKE Shimano XTR 9200 160mm
|
||||
| WHEELSET |
WHEELSET EVO Carbon SL 28H 30mm internal 6H Ratchet 40T
|
TIRES Pirelli Scorpion XCM 2.4 SP FR/ Pirelli Scorpion XCH 2.4 SP R
|
INNER TUBES Chaoyang 29×21.10/2.35
|
|||
| SEAT |
SADDLE Prologo Scratch M5 Nack
|
SEAT CLAMP Integrated
|
SEATPOST Bike Yoke Divine SL 31,6mm, 125mm Drop
|
|||
| COCKPIT |
HANDLEBAR BH Evo Carbon Top Flat 760mm, 10mm Rise
|
STEM FIT Race EVO 60mm 31,8mm -6º
|
HEADSET Acros ICR 36/45º, Block Lock 160º
|
GRIPS BH Control Grip
|
LYNX RACE 9.5
DX956
| SM | MD | LA | XL | |||
|---|---|---|---|---|---|---|
| H1 – ST LENGTH | 400 | 420 | 460 | 500 | ||
| H2 – HT LENGTH | 90 | 90 | 100 | 120 | ||
| H3 – FORK LENGTH | 525 | 525 | 525 | 525 | ||
| H4 – TT LENGTH | 566,8 | 591,8 | 619,1 | 643,7 | ||
| H5 – FRONT CENTER | 702 | 726,9 | 755,8 | 783,5 | ||
| H6 – CHAINSTAY LENGHT | 430 | 430 | 430 | 430 | ||
| H7 – WHEEL BASE | 1135,8 | 1160,8 | 1189,7 | 1217,5 | ||
| H8 – BB DROP | 40 | 40 | 40 | 40 | ||
| A1 – ST ANGLE | 76 | 76 | 76 | 76 | ||
| A2 – HT ANGLE | 67 | 67 | 67 | 67 | ||
| REACH | 420 | 445 | 470 | 490 | ||
| STACK | 588,9 | 588,9 | 598,1 | 616,5 |
